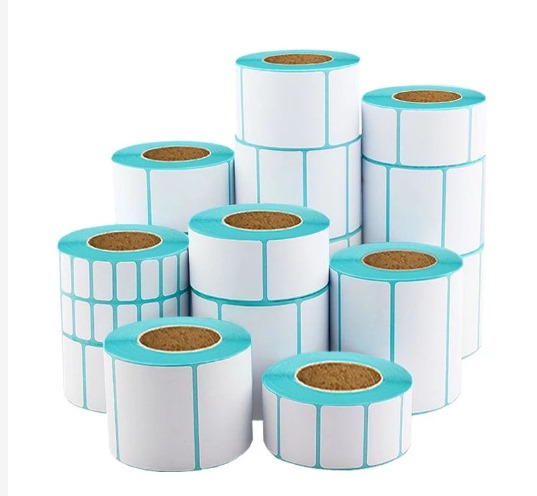

The 320 high speed slitting machine is a small slitting device suitable for slitting various roll shaped materials such as thermal paper, stickers, aluminum foil, composite plastic paper, etc. It can cut different widths.It is suitable for slitting narrow products.
Machine features:
1. The machine is equipped with an automatic meter counting device, when the set meter is reached, the machine automatically changes rolls.
2. Configurable photoelectric sensor to control correction.
3. Using an inflatable shaft for unwinding, easy to install and remove.
4. The whole machine has a compact structure, occupies a small area, saves more space.
5. The machine adopts variable frequency speed regulation, with fast cutting speed and stable operation.

Main Data:
Model: PPD-HSM320
Mother roll width: Max 320mm
Mother roll diameter: Max 500mm
Cutting width: 16mm-320mm
Rewinding Roll diameter: Max 280mm
Slitting speed: 120m/min
Voltage: 220V/380V/415V 50hz (option)
