Film Machinery

4 Shaft Masking Tape Slitting Rewinding Machine

PPD-MTS1300

4 Shaft Masking Tape Slitting Rewinding Machine

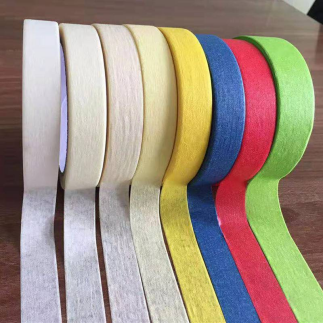

4 shaft masking tape slitting rewinding machine is suitable for slitting masking tape and BOPP tape.
Machine features:
1. The machine uses a flat blade for cutting, with a smooth cut surface.
2. Adopt 4 shaft for rewinding, when reach the setting length, it can be automatically flipped and continuously rewinding, it will improve production efficiency.
3. The unwinding is controlled by a magnetic powder controller, which can adjust the tension size.
4. Equipped with a paper tube loading and unloading machine, it can achieve simultaneous unloading and loading of tubes.

Main Data:
Model: PPD-MTS1300
Mother roll width: Max1280mm
Mother roll diameter: 800mm
Mother roll inner diameter: 3 inches (76mm)
Cutting width: 30-1280mm
Product inner diameter: 3 inches (76mm)
Cutting speed: 180m/min
Power: 5kw
Voltage: 220V/380V/415V, 50hz
