Film Machinery
PPD-5CE300

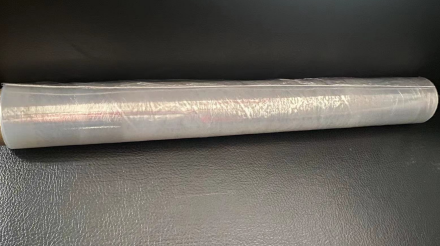

5 shaft cling film rewinder with curly edge is a newly developed rewinder by our company, suitable for rewinding cling film, PVC film, PE film, etc.
Machine features:
1. This machine is suitable for rewinding different materials, PE film and PVC film, using a knife to cut to avoid black edges at the end.
2. Using a special process to curl the edge at the end of the product for easy tearing, it is more convenient to use.
3. 5 shaft turntable for high speed conversion, automatic tube dropping and exchange, the rewinding speed is fast.
Main Data:
Model: PPD-5CE300
Mother roll width: Max300mm
Mother roll diameter: Max400mm
Mother roll inner diameter: 3inch
Product roll inner diameter : 30/35/38mm
Product roll meter: Max150m
Machine speed: Max600m/min
Voltage: 220/380/415V, 50/60Hz
Power: 4kw
