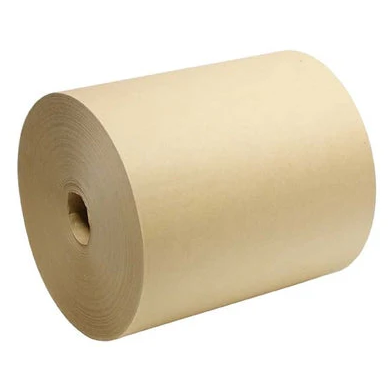

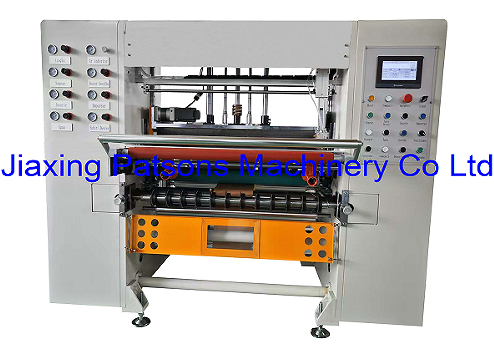

The coreless kraft paper slitter rewinder can be used for slitting and rewinding paper materials such as kraft paper、POS paper、ECG paper、 thermal paper.
This machine has a high degree of automation. It is controlled by PLC programmable controller. Different parameters such as meters and speed can be set through the touch screen, making it easy to operate. When reach the setting meter, the machine will automatically cut off and release the product.
The whole machine adopts a steel frame structure, which is very sturdy. Adopting a rounded appearance design, making the overall appearance beautiful and generous.

Main Data:
Model: PPD-CKPS900
Jumbo roll width: Max 900mm
Jumbo roll OD: Max 1200mm
Jumbo roll ID: 3inch(76mm)
Product roll width: 50mm to 900mm
Product roll ID: 20/25/30mm coreless (option)
Speed: 300rpm/min
Voltage:220/380/415V, 3ph(option)
Power:4kw
