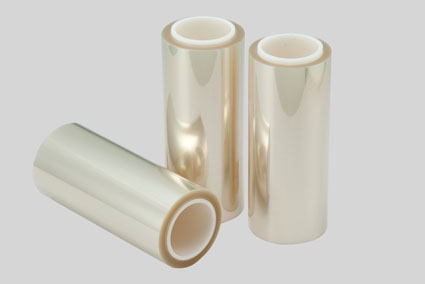

Fully automatic PET protective film rewinding machine is mainly suitable for rewinding PET film, LDPE film, laser film, etc. It is widely used in the electronics industry, optoelectronics industry, hardware industry, printing industry, etc. This machine rewinds the master roll into small rolls of different meters to meet different needs.

Machine features:
1. The machine adopts touch screen+frequency converter+PLC control, which runs more smoothly and has a good rewinding effect.
2. Using a magnetic powder brake to control the unwinding tension, the tension can be adjusted.
3. Automatic changing paper tube, automatic rewinding, equipped with conveyor belt for automatic production, simple operation.

Main Data:
Model: PPD-APFR500
Mother roll width: 500mm
Mother roll diameter: 500mm
Mother roll inner diameter: 3inch(76mm)
Product roll width: 500mm
Product roll Inner diameter: 2inch /3inch
Machine speed: 300m/min
Voltage: 220/380/415V option
