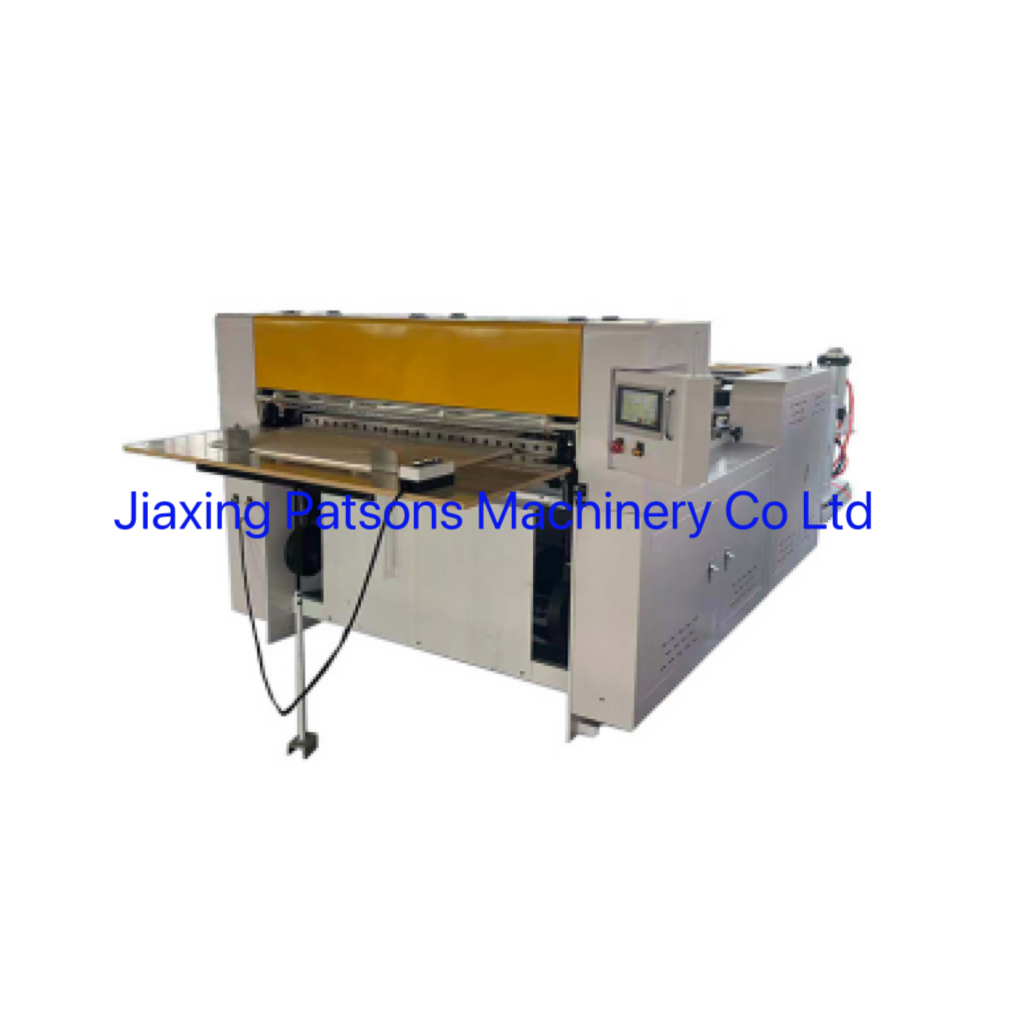

High speed automatic PP film sheeting machine is suitable for horizontal cutting of materials such as PP film, paper, non-woven fabric, aluminum foil, etc., It is widely used in industries such as flexible packaging, printing, electronics, and medical . The whole machine has a compact structure, novel design, and high degree of automation, making it an essential equipment for cutting roll materials into pieces.
Machine Features:
1. Continuous Film Feeding: The unwinding device unwinds the film roll and via the tension control system, feeds the film smoothly and at a uniform speed into the sheeting area.
2. Fixed-Length Cutting: Automatic fixed-length setting, ensures precise cutting length.
3. Automatic Stacking: Cut individual film sheets are automatically counted and stacked.

Main Data:
Model: PPD-FPSM600

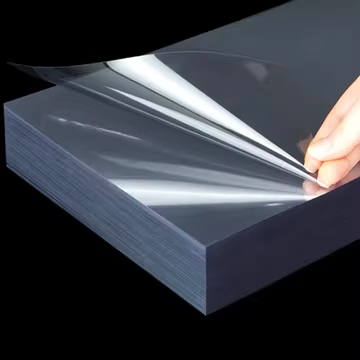

Applicable materials: PP film, baking paper, aluminum foil, etc
Mother roll ID: 76mm
Mother roll OD: 800mm
Effective cutting width: 550mm
Effective cutting length: 50-1000mm (adjustable according to material)
Effective cutting thickness: 20-300g
Max speed: 10-100m/min
Voltage: 220/380V, 50Hz
Power: 8kw
