Medical Gauze Roll Rewinding Cutting Machine

PPD-GRCM

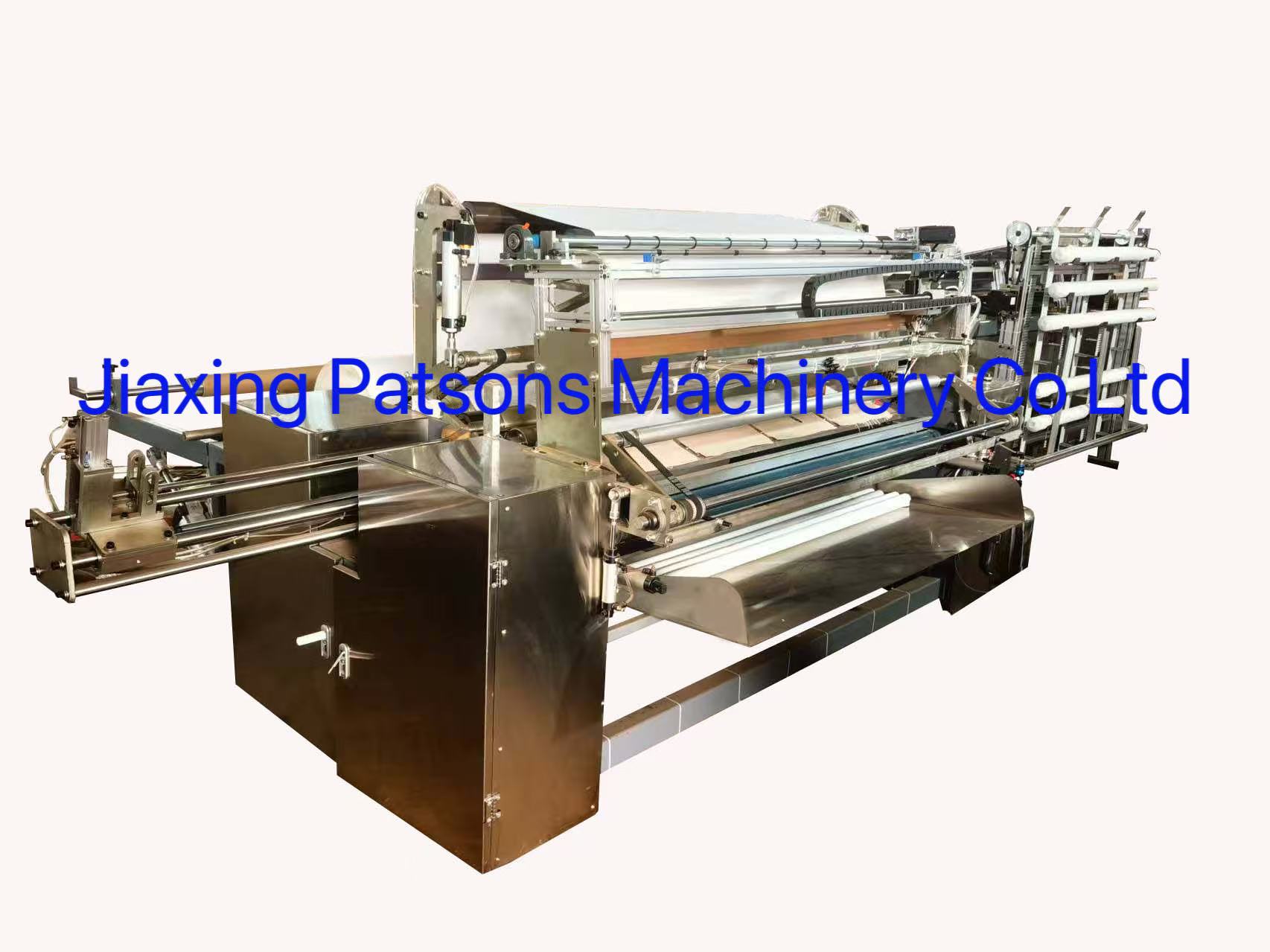

Medical Gauze Roll Rewinding Cutting Machine

Medical gauze roll rewinding cutting machine is used to produce gauze rolls, machine is made of stainless steel material to meet production requirements.
This machine can automatically rewind, cut, and pull out the core shaft, achieving automated operation.
The rewinding length can be set on the touch screen, which is easy to operate.
The cutting system adopts servo control, PLC program control, and variable frequency speed regulation, machine cuts precisely and quickly.

Main Data:
model: PPD-GRCM
Roll width: Max 1250mm
Mother roll inner diameter: 76cm (3inch)
Mother roll outer diameter: max 700mm
Product roll inner diameter: 10mm
Product roll outer diameter: 20-40mm
Rewinding speed: 20m/min
Cutting width: adjustable
Cutting speed: 80-120 cut/min
