Film Machinery
PPD- PFR1100

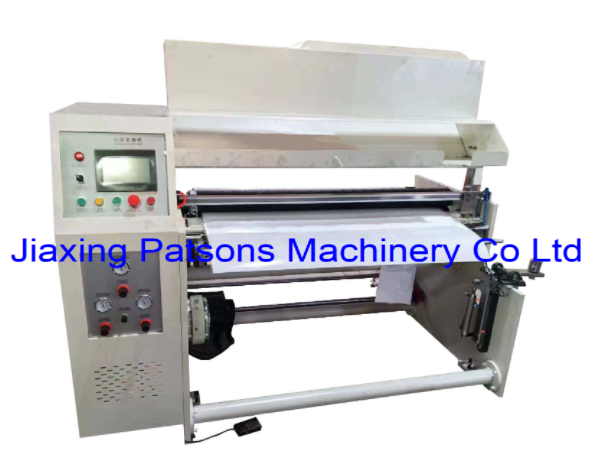

Plastic film high speed rewinding machine is suitable for rewinding materials such as plastic film, gift paper, wallpaper, wall cloth, etc.
Machine features:
1. The machine adopts a steel plate structure, and the whole machine is very sturdy;
2. Adopts single shaft rewinding, servo motor controls the feeding, machine has the functions of automatic counting and automatic cutting.
3. PLC program controls machine operation, equipped with touch screen human-machine interface for operation, very simple and convenient.
Main Data:
Model: PPD- PFR1100
Mother roll width: Max1020mm
Mother roll outer diameter: Φ 800mm
Mother roll inner diameter: 3 inches(76mm)
Rewinding roll width: Max1020mm
Rewinding roll outer diameter: Φ 260mm
Rewinding roll Inner diameter: 25mm (customizable)
Rewinding speed: Max180m/min
Machine voltage: 220/380/415V, 50hz
Power: 3kw
