PPD- MBF460

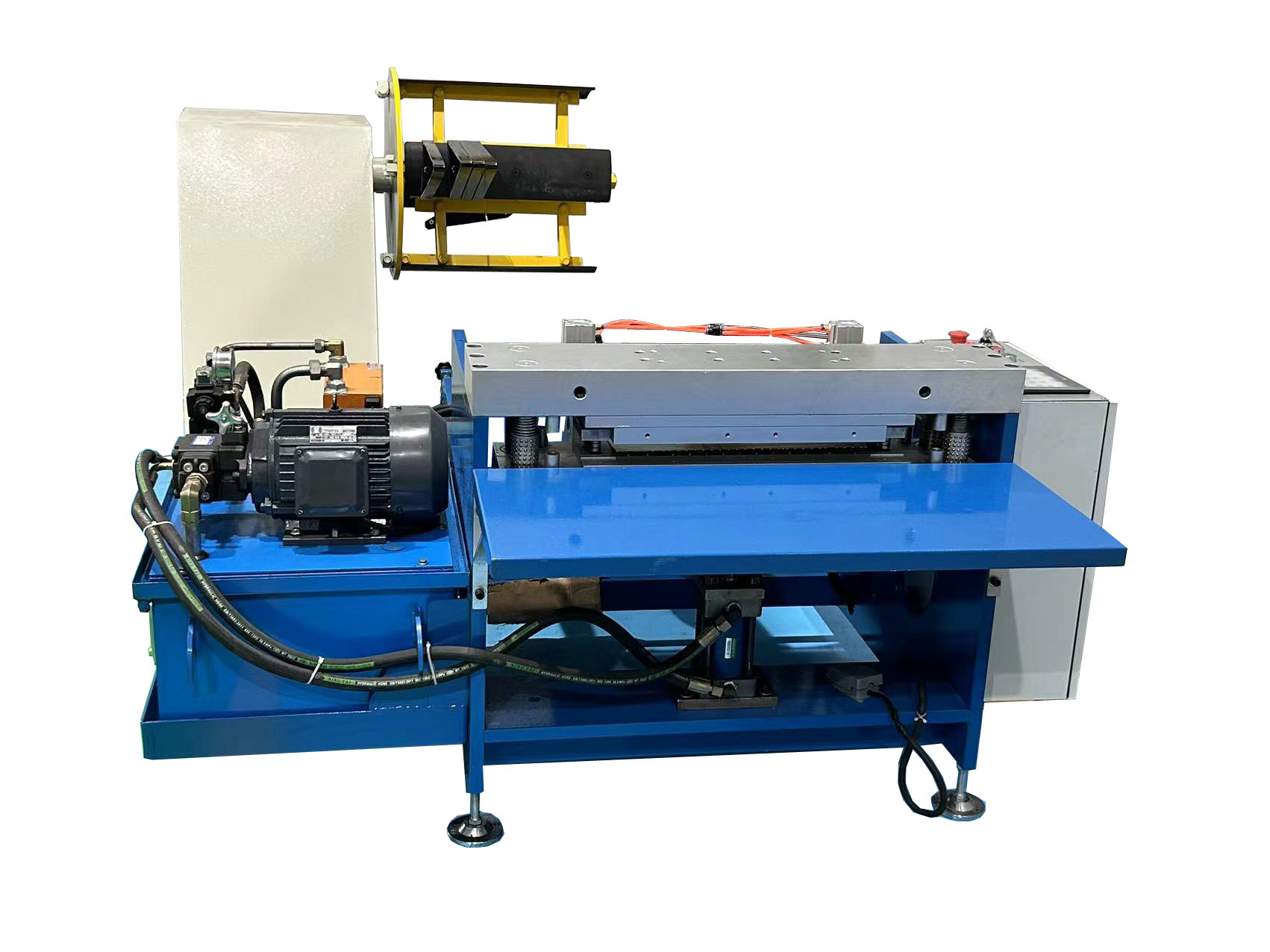

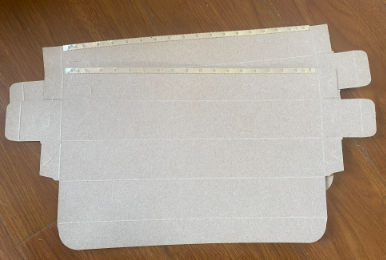

Semi automatic metal blade fixing machine is a machine that use a large metal roll to make small metal blade ,then fix onto a paper box by a mold. It is suitable for fixing paper boxes of different thicknesses, such as white cardboard boxes and corrugated paper boxes, it is used for packaging cling film roll, aluminum foil roll and silicon paper roll.
Machine features:
1. This machine is equipped with touch screens in both Chinese and English, easy to operate.
2. Adopting special technology, the mold is very durable and can be used more than 5 million times.
3. Equipped with professional feeding racks, suitable for different width materials.
Main Data:
Model: PPD- MBF460
Material roll width: 250-460mm
Material roll inner diameter: 450-530mm
Material roll outer diameter : Max 1200mm
Production speed: 45-70pcs/min
Feeding accuracy: ± 0.1mm
Power: 5kw
Voltage: 220/380/415V, 50Hz option
