Paper Machinery
PPD-TP900-C

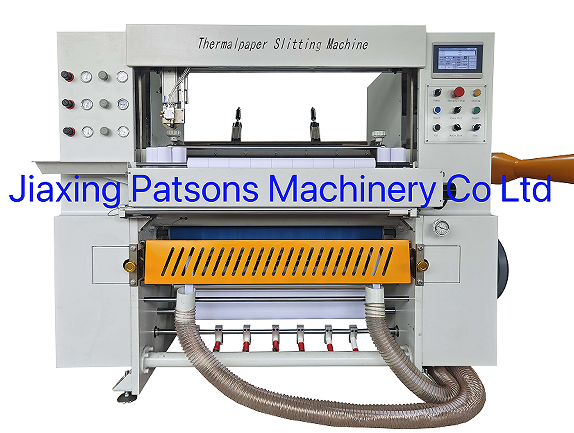

Thermal paper roll slitter with automatic waste paper collection device is a new equipment . It is mainly suitable for slitting various types of cash register paper, ATM paper, POS paper, computer bill paper, fax paper, etc.
Machine Features:
1. The machine adopts surface winding, automatic air blowing and automatic paper insertion, automatic cutting after rewinding, and automatic pasting. The winding effect is good, and the ends are cut flat.
2. The machine is equipped with an advanced PLC programmable controller + touch screen. Parameter settings are simple and can be modified via the touch screen. Unwinding uses an automatic feeding system.
3. Equipped with an automatic waste paper collection device.
Main Data:
Model: PPD-TP900-C
Applicable Materials: Thermal paper, Cash register paper rolls, ATM paper rolls, etc.
Jumbo Roll Width: Max 900mm
Slitting Width: Min 20mm
Slitting Speed: 5-190m/min
Unwind Diameter: Max 1200mm
Unwind Shaft: 3 inch air shaft
Unwind Tension: 100N
Rewind Diameter: Max 200mm
Standard Slitting Width: 57mm, 80mm（can be customized）
Voltage: 3 Ph 380V, 50Hz
Total Power: 5.5kw
