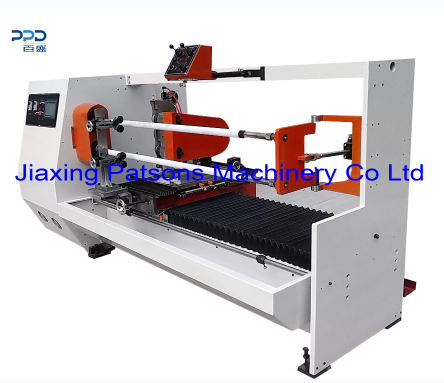

Automatic 2 shaft electrical tape roll cutting machine is suitable for cutting electrical tape, kraft paper tape, textured paper, PVC, OPP, PE and other tapes.

Machine features:
1. The machine adopts a touch screen+PLC programmable system, which can set different cutting widths and automatically change shaft for cutting.
2. Using servo motor control, precise size positioning, using linear sliding rail to support the tool holder, precise and smooth positioning action.
3. The servo motor controls the feed method, with a three-stage speed feed for cutting rolls, improving efficiency and get good cutting effect.

Main Data:
Model: PPD-2ETC1300
Mother roll width: 1300mm
Cutting width: Min 5mm
Product ID: 38mm
Product OD: Max 150mm
Cutting shaft: 2 shaft
Cutting speed: 300-1800rpm/min
Voltage: 380V, 50Hz
