Film Machinery
PPD-SC1300

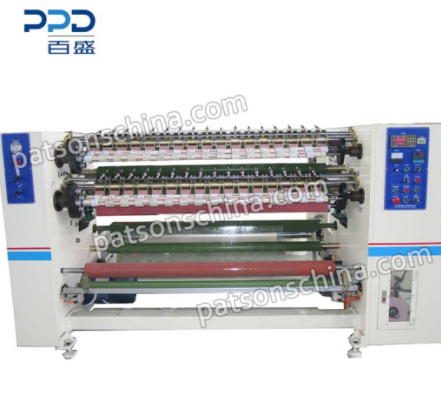

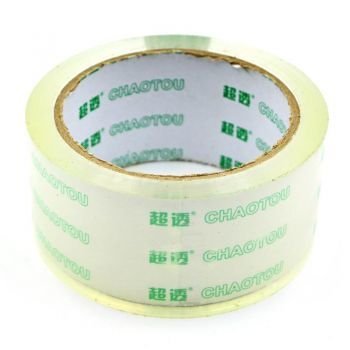

Super clear tape slitting rewinding machine is suitable for slitting and rewinding various types of BOPP tape, box sealing tape, glass tape, crystal tape and others . The machine has a high output and high speed operation.
Machine features:
1. Adopt four shaft automatic exchange rewinding to improve work efficiency.
2. Equipped with silicone wheel pressure rollers to drive away the bubbles generated during tape rewinding.
3. PLC control system and touch screen .
4. Adopting a unique design, it completely eliminates the wrinkling phenomenon of the tape during unfolding or feeding.
5. Raw material rollers can reduce the noise generated during the production process.
Main Data:
Model: PPD-SC1300
Jumbo roll width: 1300 mm
Jumbo roll diameter: Max 800mm
Slitting width: Min 48mm
Finished roll diameter: Max180mm
Speed: max 200m/min
Slitting knife: flat knife
Power: 4KW
