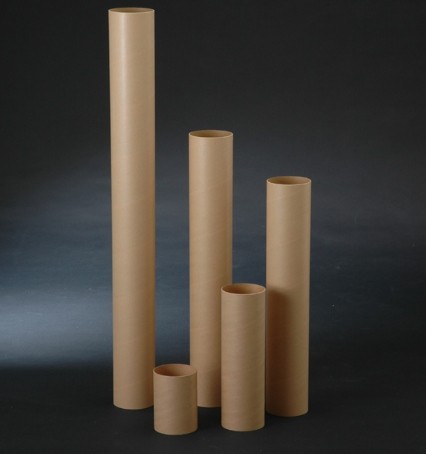

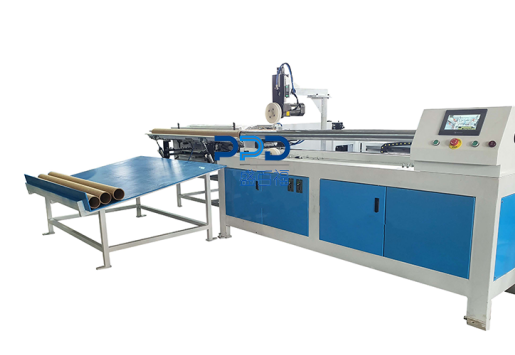

Fully automatic paper tube cutting machine is suitable for cutting different specifications of paper tubes, PVC tubes, nylon tubes, ABS tubes, and masking tape.
Machine features:
1. The machine adopts imported tungsten steel knife, pneumatic cutting, the surface is very smooth.
2. Servo motor control the machine , automatic feeding, automatic cutting and automatic unloading.
3. Imported PLC controller, intelligent control, precise cutting.
Main Data:
Model: PPD- APC3
Max length of paper tube: 3200mm
Paper tube thickness: 1-20mm
Number of cutters: 1set
Cutter material: Tungsten steel blade
Minimum cutting width: 1mm
Feed method: pneumatic cutting
Loading method: automatic
Unloading method:automatic
Main motor : 2.2kw
Voltage: 380V, 50Hz
Working air pressure: 0.5Mpa
