Film Machinery
PPD-CPL450

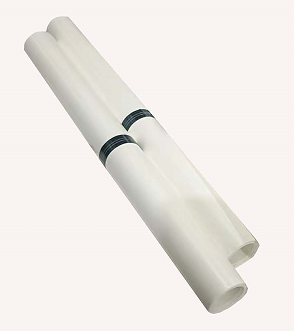

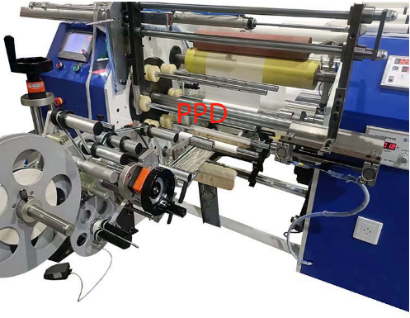

Fully automatic silicon paper rewinding machine with labeling is a newly developed equipment by our company, suitable for rewinding silicon paper, baking paper, food paper and other products.
Machine features:
1. Using pneumatic feeding instead of manual feeding, more labor-saving.
2. The machine has changed to a rubber roller transmission device to prevent material slippage ,achieve more accurate meters.
3. Machine is equipped with an automatic labeling system to ensure the neatness and aesthetics of the products.
4. Equipped with a mechanical gripper and assisted by a robotic arm, the product can be easily removed.
Main Data:
Model: PPD-CPL450
Mother roll width: Max 450mm
Mother roll outer diameter: Max 500mm
Mother roll inner diameter: 3 inch
Loading method of mother roll: Pneumatic cylinder
Product roll inner diameter: Coreless 25mm
Product length: Max 60m
Speed: Max 300rpm/min
Voltage: 220/380/415V,3ph(option)
