Film Machinery
PPD-SFP500

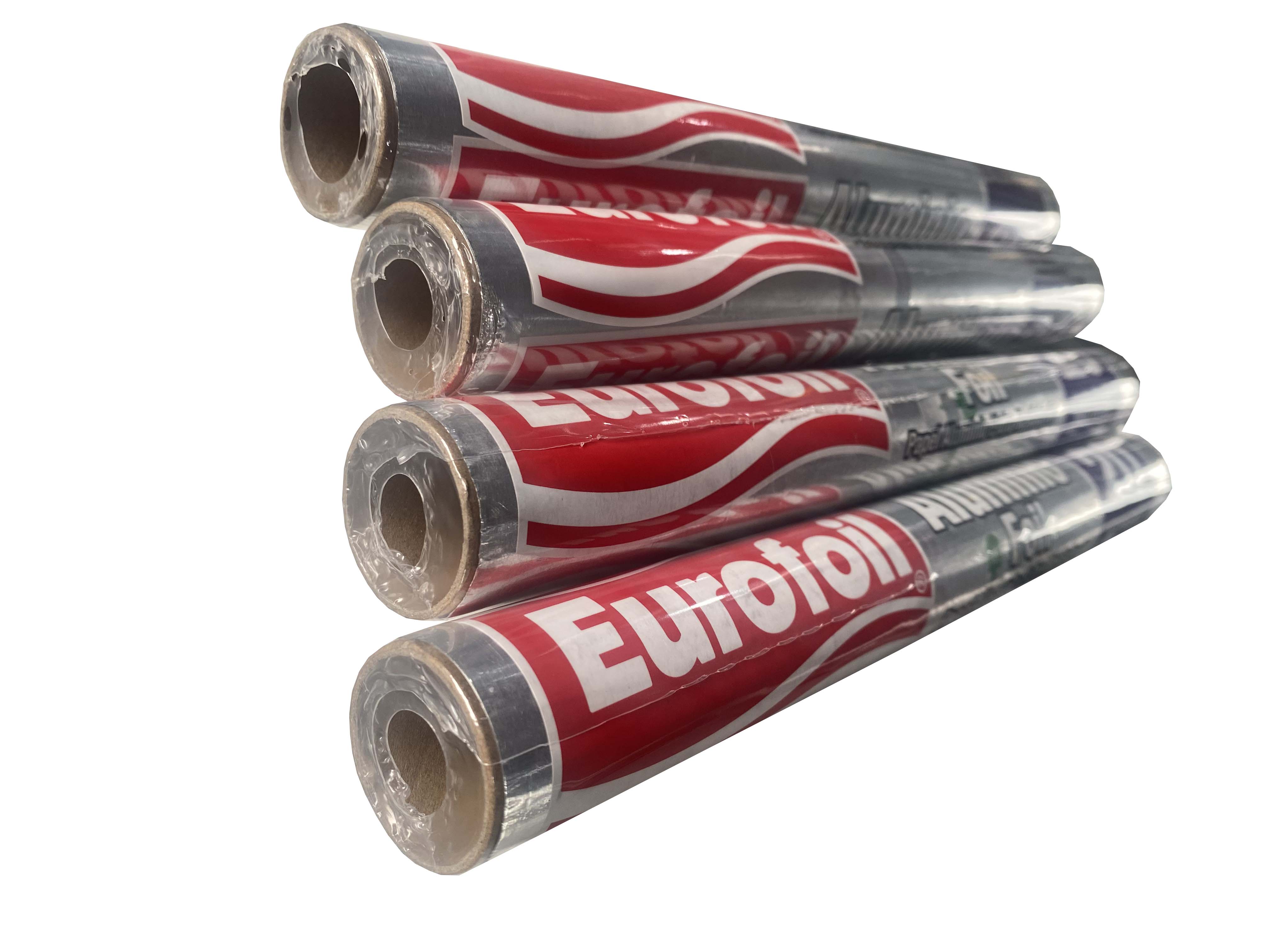

Fully automatic shrink film packaging machine is suitable for flexible packaging of aluminum foil rolls. The aluminum foil roll is wrapped with the film, then shrink the film at both ends, secure the aluminum foil roll firmly for protection. The machine can be used in conjunction with an aluminum foil rewinding machine to form an automated production line, thereby improving the production efficiency.
Machine Features:
1. This machine is made of carbon steel, ensuring a stable frame that is not easily deformed, greatly extending the machine's service life.
2. Stainless steel heating elements provide stable temperature control and durability. Combined with dual fans to create heat circulation, this ensures uniform shrinkage, excellent packaging results, and high efficiency.
3. Parameters are set via a touchscreen, making operation simple and easy to understand.
Main Data:
Model: PPD-SFP500
Packaging Material: POF Shrink Film
Material Width: 140-500mm
Material Thickness: 25mic
Material Inner Diameter: 3 inch
Material Outer Diameter: Max 450mm
Wrapping Length: 170-220mm
Product Roll Outer Diameter: 30-59mm
Product Width: 140-470mm
Production Speed: Max 20 rolls/min
Voltage: 220V/380V/415V, 50Hz
Power: 7kW
Air Supply: 0.65kmp
