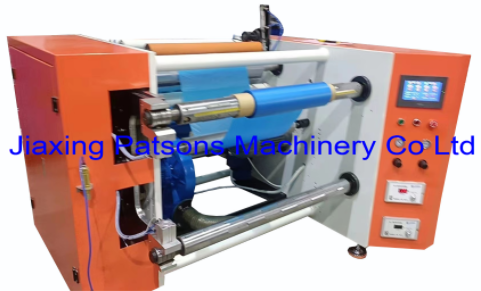

The release film slitting rewinding machine is suitable for slitting and rewinding films of different thicknesses, such as release films, PET films, laser films, etc. It can slit and rewind films of different widths.
Machine features:
1. The machine adopts a steel structure, with a neat appearance ,it is easy to clean.
2. Touch screen+PLC control, running stably ,has a good production effect.
3. The machine is equipped with an automatic counting function for precise meter counting.
4. Two shaft exchange winding facilitates the replacement of paper tubes. When the setting meters is reached, the paper tubes are automatically replaced, greatly improving production efficiency.

Main Data:
Model: PPD-RFSR500
Max width of Jumbo roll: 500mm
Max Jumbo roll diameter: 400mm
Finished roll width: 20-500mm
Finished roll diameter: Max200mm
Inner diameter of finished roll: 25/38/50/76mm option
Rewinding length setting: 3-100 meters
Speed: 300rpm/min
Voltage: 220/380/415V, 50/60Hz
Power: 4kw
