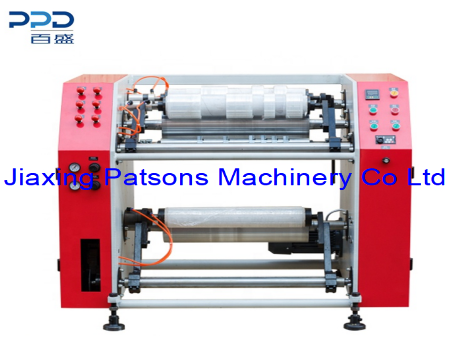

Semi Automatic Stretch Film EdgeFolding Slitting Rewinding Machine

PPD-FSR500

Semi Automatic Stretch Film EdgeFolding Slitting Rewinding Machine

Semi automatic stretch film edge folding slitting rewinding machine is a newly improved model , which combines three functions: slitting, rewinding, and folding to meet the different requirements of customers.
Machine features:
1. The entire machine adopts a sturdy steel frame structure, which is sturdy and stable.
2. Three functions available for selection: slitting, rewinding, and edge folding
3. Automatic meter counting function, automatic stop when reaching the setting meter.

Parameters:
Model: PPD-FSR500
Jumbo roll width: 500mm
Finished roll width: 30-500mm
Jumbo roll OD: 400mm
Jumbo roll ID: 3 inches (76mm)
Finished roll ID: 1.5/2/3inch (option)
Design Speed: Max800m/min
Voltage: 220/380/415V (option)
Power: 2.2kw
