Film Machinery
PPD-PVC500

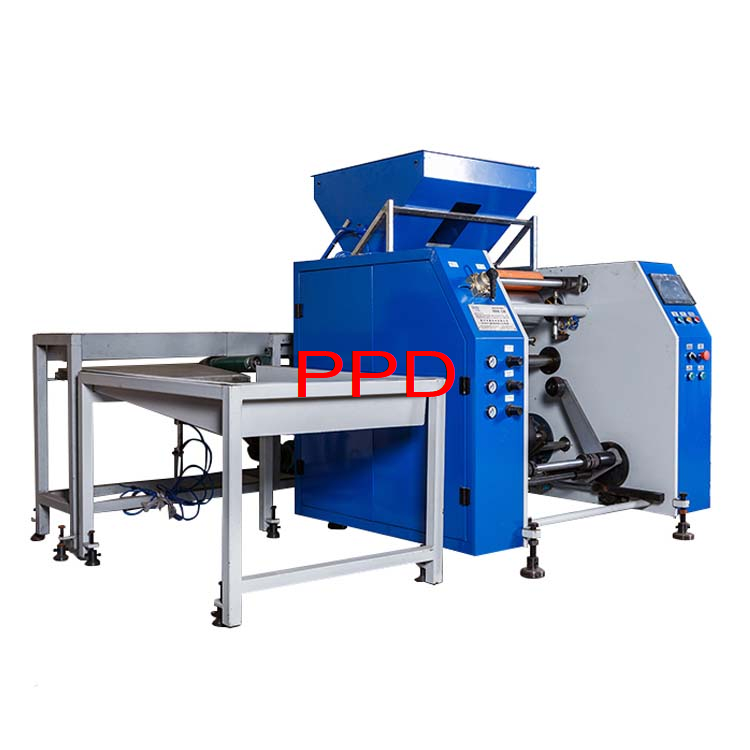

Single shaft automatic PVC film rewinding machine is suitable for rewinding PVC film, PE cling film, food film, wrapping film, etc.
This machine can rewind films of different meters and widths, with a maximum width of up to 500mm.
The whole machine adopts a fully automatic design, with automatic paper tube loading, automatic rewinding, and automatic roll replacement when the set meter is reached. The operation is very simple.
Using blade cutting method, the product is cut neatly and aesthetically after rewinding.
Main Data:
Model: PPD-PVC500
Applicable materials: PVC film, PE film, wrapping film
Mother roll width: Max 500mm
Mother roll ID: 3 inches (76mm)
Product width: Max500mm
Product length: 1000m
Rewinding speed: Max900m/min
Voltage: 220/380/415V, 50hz
Power: 4.37kw
