New Model Aluminum Foil Baking Paper Rewinding Machine

PPD-AFBP450

New Model Aluminum Foil Baking Paper Rewinding Machine

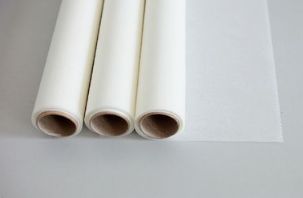

New model aluminum foil baking paper rewinding machine is suitable for rewinding aluminum foil , baking paper and food paper.
From large roll rewind into small rolls of different lengths, such as 50 m, 100 m, 150 m, etc.

Machine features:
1. The machine is equipped with steel roller and silicon roller, which can rewind different materials .
2. The double roller is easy to disassemble and can be operated by one person.
3. Using silicone pressure rollers to ensure the rewinding effect of baking paper.
4. The whole machine is equipped with a touch screen in both Chinese and English, which is easy to operate and adjustable in size.

Model: PPD-AFBP450
Material:Aluminium foil,Baking paper, Silicon paper
Mother roll width: Max 600mm
Mother roll ID: 3inch
Mother roll OD: 300mm
Rewind roll width: Max600mm
Rewind roll ID: 30/35/38mm option
Rewind roll length: 5-300m
Desigh speed: Max150m/min
Voltage: 220/380/415V option
