Film Machinery
PPD-SAFR450

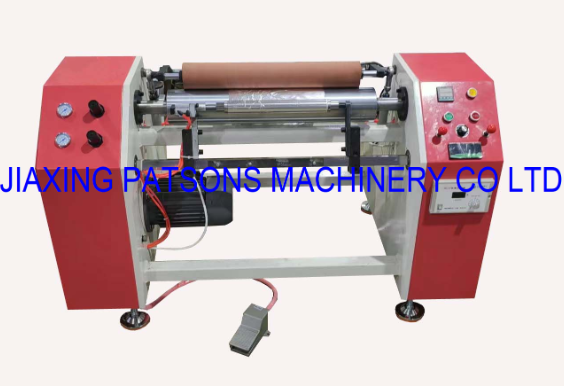

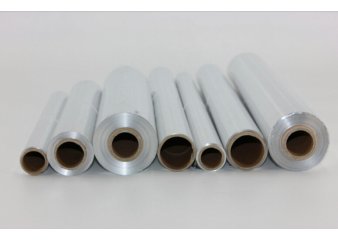

Single shaft aluminum foil rewinding machine is a new type of rewinding machine developed by our company. It rewinds large rolls of aluminum foil into small rolls, with a max rewinding capacity of 300 meters. The machine has simple functions and is easy to operate.
Machine features:
1. This machine adopts a steel frame structure, which is very stable overall, more beautiful appearance.
2. The rewinding speed is adjustable.
3. Using automatic meter counting,when the setting meter is reached, machine will automatically stop.
4. The product surface is neat and flat after rewinding.
Main Data:
Model: PPD-SAFR450
Applicable material: Aluminum foil
Mother roll width: Max450mm
Mother roll inner diameter: 3inch(76mm)
Rewinding Inner diameter: 30mm, 35mm, 38mm (option)
Rewinding meter: Max300m
Rewinding speed: Max100m/min
Voltage: 220/380/415V, 50/60Hz (option)
